PCB Manufacturing

Advanced board builds, faster review, and a clearer path to production.

NFR supports PCB and substrate manufacturing with a U.S.-based workflow that is built for teams who need speed, technical clarity, and confidence before placing the final order. We help move designs from file package to manufacturable hardware without making the process feel opaque or slow.

Start PCB Order Talk With Our PCB Team
Made in America Reviewed by experts Delivered Fast

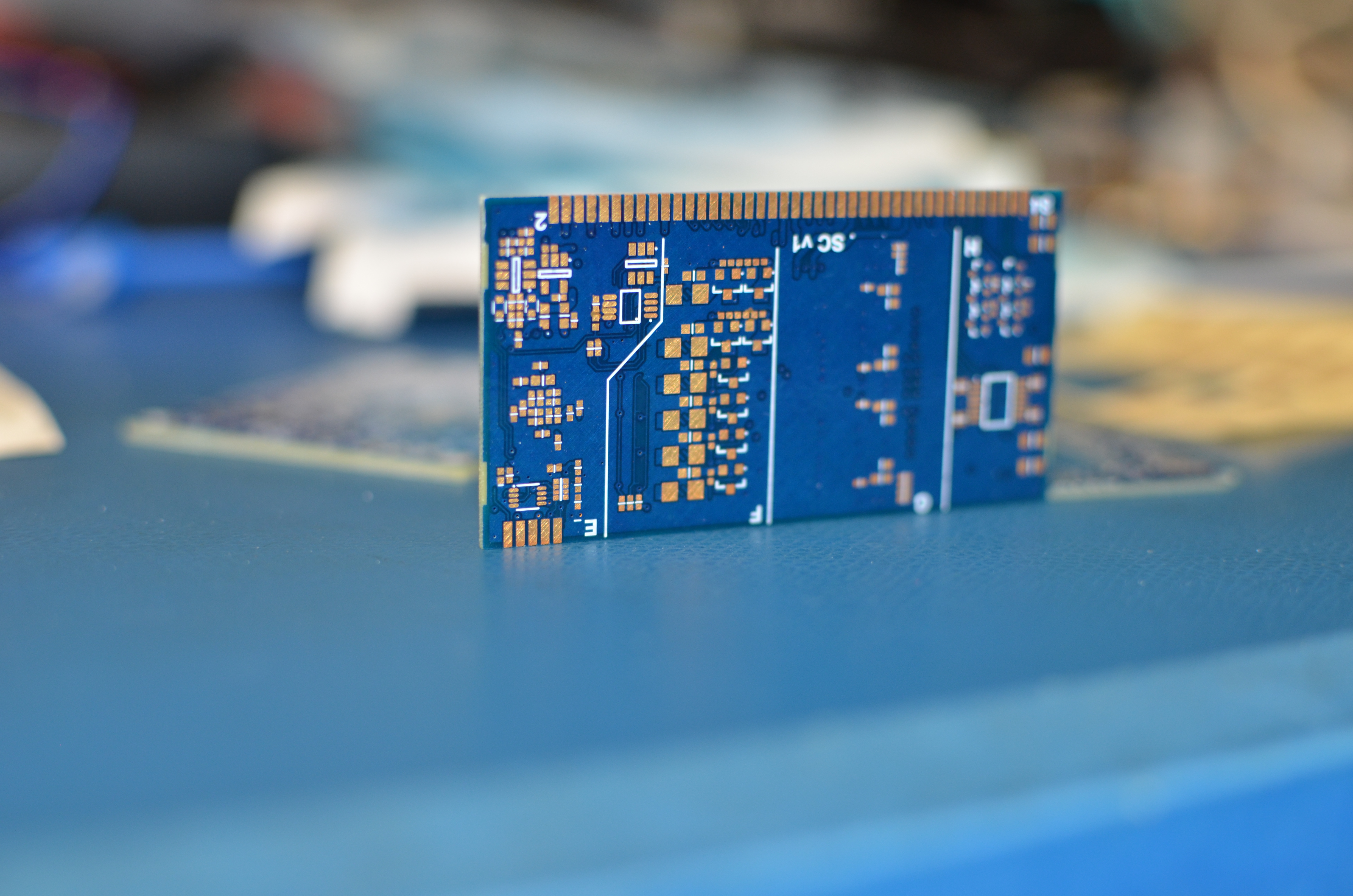

NFR PCB board standing in premium hero view
Built for customers who want responsive communication, design-aware review, and a practical handoff into board fabrication.
Why NFR

PCB manufacturing that feels engineered, not outsourced.

The goal is not only to take files and return boards. The goal is to reduce uncertainty, catch avoidable issues early, and keep the process understandable for teams working under real schedule pressure. Whether you are ordering a straightforward board or a more advanced substrate-driven build, the experience should feel direct, responsive, and technically grounded.

Fast Review and order flow designed to move quickly once files are ready.
Clear Customer communication that explains what is needed and what happens next.
Secure U.S.-based made for customers who care about tighter control and visibility.
Practical A process built for engineers, hardware teams, and product builders who need technical answers.
Our Basic Service Specs

Core board capabilities and ready-to-order substrate options.

Below is a clean snapshot of the standard capabilities we currently support for quick-turn board programs, drilling, finishes, and stack-up options. If your program needs something outside of these defaults, our team can review it directly with you.

Standard Board Specifications *

Specification Value
Minimum Board Size 1in x 1in
Maximum Board Size 6in x 6in
Layer Count 1, 2, 4 or 6

Drilling *

Minimum Hole Size 10mil
Minimum Annular Ring 10mil
Minimum Slot Size 25mil

Features *

Minimum Trace/Space 6/6mil
Soldermask Color Blue
Minimum Soldermask Web 4mil
Silkscreen Color White
Minimum Silkscreen Feature Size 4mil

Finish Platings Available *

Electroless Nickel Immersion Gold (ENIG)
Immersion Tin
Bare Copper

Ready to Order Substrates *

Manufacturer Thicknesses Cu Thickness
KINGBOARD KB-6167F 10, 14, 28, 58mil 0.5oz or 1oz
ISOLA 370HR 10, 14, 28, 58mil 0.5oz or 1oz
ISOLA ASTRA MT77 10 mil 0.5oz

Standard Stack Up

Reference Stackups: these standard options provide a quick baseline for the most common 2-layer and 4-layer builds.
2 Layer Description
Layer 1 1oz Outer Copper
Core 58mil +/- 10%
Layer 2 1oz Outer Copper
4 Layer Description
Layer 1 1oz Outer Copper
Core 1 25mil +/- 10%
Layer 2 1oz Inner Copper
Prepreg 6mil +/- 10%
Layer 3 1oz Inner Copper
Core 2 25mil +/- 10%
Layer 4 1oz Outer Copper
* Reach out if your required capabilities or substrates are not listed above -- manufacturing@noisefigure.com
Ready to Order

Start your PCB or substrate submission when you are ready.

Use the order page when your files are ready for upload, or talk with our PCB team first if you want a quick checkpoint before submission.

Go to PCB Order Form Contact PCB Team
